Hot sale Automatic Lubricants filling machines line

Hot sale Automatic Lubricants filling machines line

Hot sale Automatic Lubricants filling machines line
Hot sale Automatic Lubricants filling machines lineHot sale Automatic Lubricants filling machines lineHot sale Automatic Lubricants filling machines lineHot sale Automatic Lubricants filling machines lineHot sale Automatic Lubricants filling machines line
CategoriesLubricating oil filling line
AlbumView larger image
BrandDONGTAI
ModelFPML
Filling nozzles8
Filling speed1500-2000 (barrels / hour)
Filling capacity1-5L
Filling accuracy± ≤ 0.1% FS
Whole line consumptionabout 100L/Min
The equipment noiseless than 50D
FOB portQingdao
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2018-12-17
Detail Information
Hot sale Automatic Lubricants filling machines line
Filling line characteristics

The filling line equipment has the characteristics of stable, easy operation, high cost performance and high automation. Compared with the same kind of product, it has a longer service life, a complete set of ability, and a reasonable design of the whole line. Equipped with coordinated photoelectric and whole line interlocking devices, the whole line needs only 2-4 workers for operating. The technology used is the leading level in today's industry. The whole line of filling equipment meets the needs of production, unmanned and integrated production.

Filling line specifications
Filling nozzels
8
Filling speed

1500-2000 (barrels / hour)

Filling capacity

1-5L
Filling accuracy

± ≤ 0.1% FS

Power supply

 220/380V3 phase +Earth Wire, 50 Hz

 Number of workers

3-5 people

Whole line consumption

about 100L/Min

 The equipment noise

less than 50D

Technical description of single machine equipment
1.bottle feeding machine

The machine is suitable for sorting and feeding of various plastic buckets, and has stable performance. It can be used together with the automatic packaging line to save labor and increase production efficiency. Put the whole barrel flat on the platform, and push the rod automatically to push the belt into the barrel. Orderly, do not hurt the barrel. It is composed of PLC control electric part, photoelectric sensor and frequency conversion governor. It has high integration level, strong control ability, reliable operation and can be controlled in conjunction with filling equipment.

Overall size

2000×1200×1000mm

Production capacity

≤ 3000 bottles/hour

Applicable specifications

1-4Lbottle

Equipped with power supply

220V 50Hz 1.5KW

weight

300kg
2.automatic filling machine

This machine is a flow meter filling machine with high filling accuracy. It applies to 1-5L liquid for filling.It uses filling bulkhead of preventing leaking and wire drawing, filling up and down system of preventing high foam products, assuring the lip orientation and automatic control system. The tank controls material level automatically ,feeding the material is also automatic.The tank adopts the pressurized design that will improve the speed of the blanking. Combine with the mechanotronics protecting device, if the machine has any abnormal information ,it will stop and alarm automatically. The touch screen will appear the detail parts which is abnormal. It is produced with the GMP standards, safety, environmental , hygienism, beautiful and adapt to different kinds of work place.

Filling nozzles

8
Filling capacity
1-5L
Filling type

Flow meter

Filling speed

1500-2000 (barrels / hour)-4L

Filling accuarcy

± ≤ 0.1% FS

Power supply

220/380V 3 phase +Earth Wire, 50 Hz

Pressure

0.5-1 .0 Mpa

Power
2.5kw
Humidity

<98 %

Ambient temperature

040

Size

1800*1200*1780mm

weight

300KG

3.automatic capping machine

machine adopt tracking apparatus and private servo displacement system , includes cap sorting, hanging and capping in one unit, capping head and bottle running synchronous, capping heads adopts servo controlled torsion capping, no harm to bottles and caps. Whole machine advanced structure, smooth operation, low noise, wide range of application, high production speed.PLC memory formula, one key call parameter, External frame of security protection. Automatic lubrication function long life time.

Capping heads

1

Capping capacity

2000 bottles/hour

Bottle size

D 30-110mm H 50-250MM

Cap size

H 10-35MM 18-80MM

Voltage

380V 50Hz

Power
5.5kw
Air pressure

0.55-0.65MPa

Production efficiency

≥98%

packing pass rate

≥99.9

Weight

900kg
Size

1700×1300×2200mm

4.water-cooled induction sealing machine with removing device

Type of Equipment: automatic on-line high-speed sealing machine

Control System: transistors modular digital integrated circuit control ground

Cooling System: Dual fan, double radiator water cooling system forced circulation

sealing effect: the seal intact, one hundred percent. Even a small amount of liquid bottle leaving traces, does not affect the sealing effect.

Power

2800W

Voltage

AC 220V / 50Hz 13A

Sealing diameter

φ16-80mm

Sealing speed

3-12m / min, 40-150 bottles (φ30mmPE bottle 120 bottles / min)

Container height

30-600mm special requirements can be customized

Sensor size

850 × 120 × 900mm

5.double side labeling machine

This machine is widely used in food, toys, daily chemical, electronics, medicine, metal, plastic, printing and other industries; such as flat shampoo bottles, flat medicine bottles and so on. It adopts standard PLC, touch screen, standard sensor electronic control system, human-computer interface in Chinese and English notes and improve the function of fault tips, operational guidance functions, troubleshooting instructions; easy to use and easy maintenance; no product non-labeling, non-sticker auto-correction and automatic detection function. It can be also matched with batch coder or printer coder function.

Power

3KW

Voltage

380V,50HZ

Speed

30-50bottle/min

label specifications

W.30100mm H.30160mm

Bottle size

thickness 15-120mm, Height 90-300mm

Labeling accuracy

±1.0mm

Width for label

10-150mm

Height for conveyor

840-900mm

Size

2400mm×1500mm×1600mm

6.Videojet 630S Imported computer ink jet printer

Printing line

1-3

line printingspeed

492fpm(150mmin)

Sign Line

5x55x77x912x16,16X16

Double /Three line

5x5,5x7

Character height

2mm 7.5mm

Printing distance

Range5mm-15mm Best12mm

Keyboard

Contsist of 72 Character

Display

320x240 Bright blue backlit 5.7 "LCD Display

WYSIWYG editing screen information

Customer logo / design

Can be created for each user on a computer or printer

Character Set

English, Simplified Chinese

Language and interface options

English, Simplified Chinese

Information Storage

50 complex information. Unlimited storage using USB.

Standard USB with logo and memory backup features

Protection class

IP43: Stainless steel cabinet

Sprinkler head

Heating nozzle

Diameter

1.6 "(41.3mm)

Length

9.5 "(241.0mm)

Throat

Ultra-flexible

Length: 6.56 '(2m)

Diameter: 0.91 "(23mm) bend radius: 3.O" (76.2mm)

Smart ink cartridges

0.793qt (750ml)

Solvent intelligent cartridge

0.793qt (750ml)

temperature range

410F to 1130F (5 ℃ -45 ℃)

Claim

Nominal power 100-120 / 200-240VAC. 50 / 60Hz. 90

Weighs

No packaging and neck weight: 35.28lbs (16kg).

Options

Electric eye interface shaft encoder interface

9.8 ft (3m) hose 60 or 70 micron nozzle

7.Opening-packing-sealing Integrated Machine

The machine is new type of automated packaging equipment,reached and designed on the basis of foreign advanced technology. The machine has distinctive features compared with the similar packaging way. The vast majority of regular bottled, boxed, block and other products, widely use corrugated carton packaging in the present domestic production, has been accepted by the public.It can finish at one time, reduce the cost of equipment and the space of equipment and raw materials and all levels of transportation contradiction. The appearance of the packaging is beautiful and smooth;It is tight and firm after wrapping.Application of unpacking-packing-sealing integrated machine, reduce labor intensity, labor resources and production process, will upgrade the traditional packaging way and the inevitable trend of development.

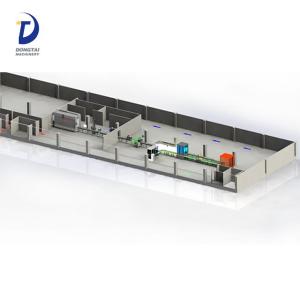

Design layout example
Our certifications
Quality control

In order to ensure product quality, all suppliers of raw materials, electrical components, and industrial automation that strictly control all aspects of circulation are from well-known brands at home and abroad. They must be strictly inspected by quality inspectors before entering the warehouse. Use, product production is completed, from the assembly plant into the commissioning workshop, after a number of rounds of precision and speed test, after commissioning can be allowed to leave the factory.

After-sales servise
FAQ

Q: What's the insurance of after-sale service after purchase?

A: All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable.

One year warranty service for all machine, please feel free to contact us if you have any questions.



Q: When the machine arrives at the work site, is it easy to install? How to solve the problem of quick installation and use?

A: All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.

Install video URL: https://www.facebook.com/groups/1644623782523083/

https://www.youtube.com/channel/UC_wUu5QTxgZsfGRzgxxK29w?view_as=subscriber

(FOLLOW US ON YOUTUBE, TO SEE MORE ABOUT US)

After-sales appointment installation service phone :

+8618560751875 86-531-88168830 engineer Zhang



Q: During the use of the machine, how to get after-sale service?

A: We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.



Q: Will the accessories change frequently with machine ?

A: The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.

Packing&delivery

1. Cover by PVC film + fumigated wooden case;

2. Wooden case suitable for long distance ocean shipping.
